1.Function:

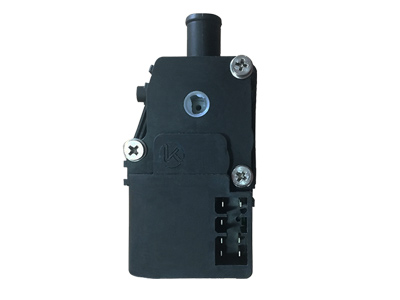

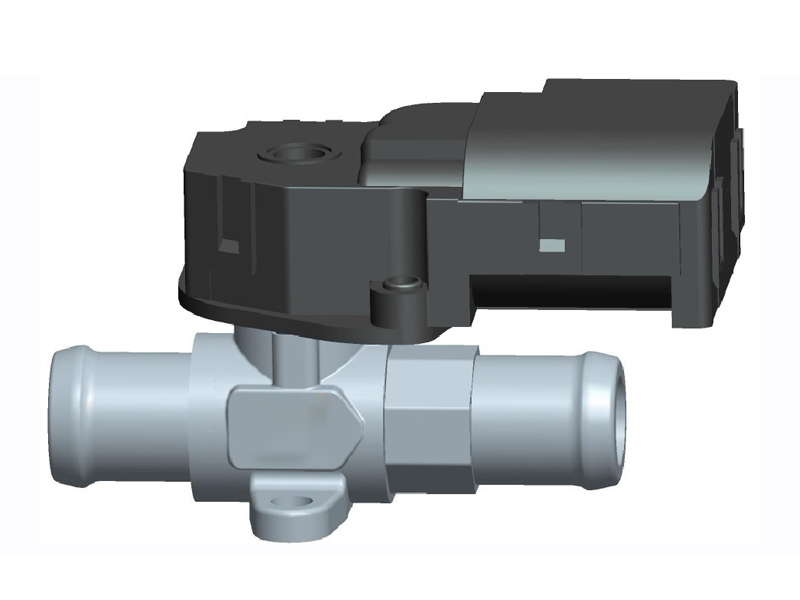

Operation: special control valve with an actuator to drive rotation. The actuator is controlled by a standard controller and it drives valve rotating to a suitable open position with controlling signals.
Percentage feature: the percentage of flow characteristics with flap valve control.
2. Application case:
YUTONG BUS, XIAGONG, LIUGONG
3. Accessories:
• Bracket: plentiful selects, or customization;
• Lever: plentiful selects, or customization;
• Connector: customization.
Operation: special control valve with an actuator to drive rotation. The actuator is controlled by a standard controller and it drives valve rotating to a suitable open position with controlling signals.
Percentage feature: the percentage of flow characteristics with flap valve control.
2. Application case:
YUTONG BUS, XIAGONG, LIUGONG
3. Accessories:
• Bracket: plentiful selects, or customization;
• Lever: plentiful selects, or customization;
• Connector: customization.
| Code | Linear water valve |
| Power supply | DC12V /DC24V |
| Medium | cold ,hot water |
| Medium temp | -5°c--100°c |
| Flow characteristic | Linear |
| Max diameter | DN14 |
| Leakage rate | <1L/h(no leakage at factory) |
| Interface form | hoop |
| Rotation angle | 90°c |
| Installation | Horizontally upright |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Maintenance | Maintenance free |
| Dimensions | 107X55X63(mm) |
| Weight | 470g |
| Quality certification | TS16949/ISO9001 |

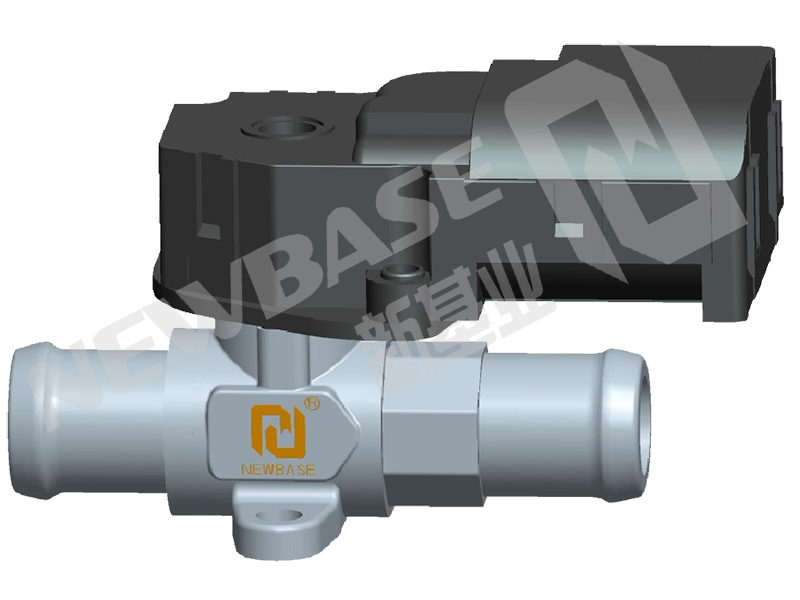

a. Inner ball valve design. Linear water flow

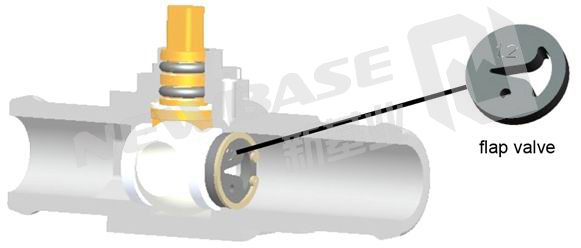

b. Bulit-in flap valve, percentage flow characteristic
b. Bulit-in flap valve, percentage flow characteristic
c. Stable,mature product
d. Climate regulation more gently.
e. Mulit control mode is optional.
d. Climate regulation more gently.
e. Mulit control mode is optional.
