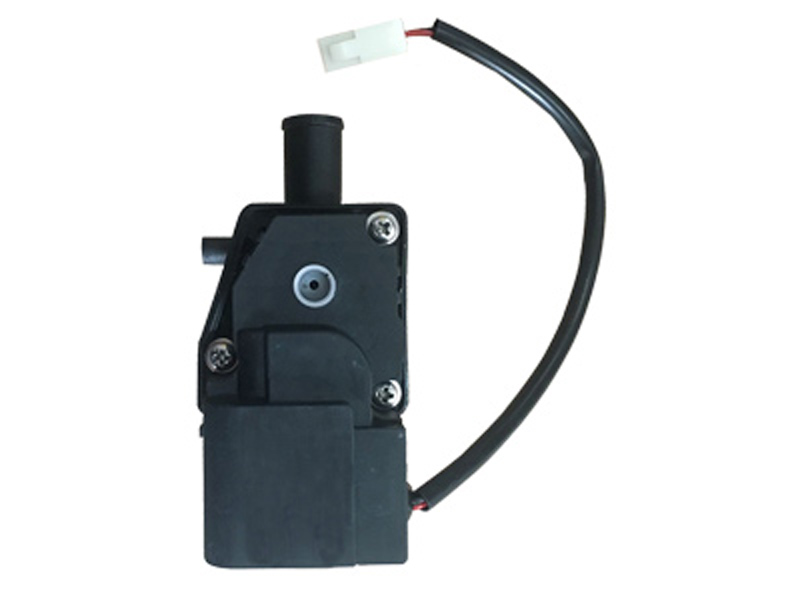

The valve open/close by switching the connection of wiring polarity.
| Power supply | DC12V /DC24V |
| Medium | cold ,hot water |
| Medium temp | -5°c–100°c |
| Flow characteristic | on/off |
| Max diameter | DN13 |
| Leakage rate | <1L/h(no leakage at factory) |
| Interface form | hoop |
| Rotation angle | 90°c |
| Installation | Horizontally upright |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Maintenance | Maintenance free |
| Dimensions | 112x57x72mm, (wire length is adjustable) |
| Weight | 175g |
| Quality certification | TS16949/ISO9001 |
Dimension drawing
Connection:
a. Leading wire type
b. Motor Pin mode
a. Most popular type
b. Stable,mature product
c. Economic cost. Mass production
d. The length of leading wire customer-design
b. Stable,mature product
c. Economic cost. Mass production
d. The length of leading wire customer-design
Customized connector.
Cusomized wiring length.
Cusomized wiring length.
