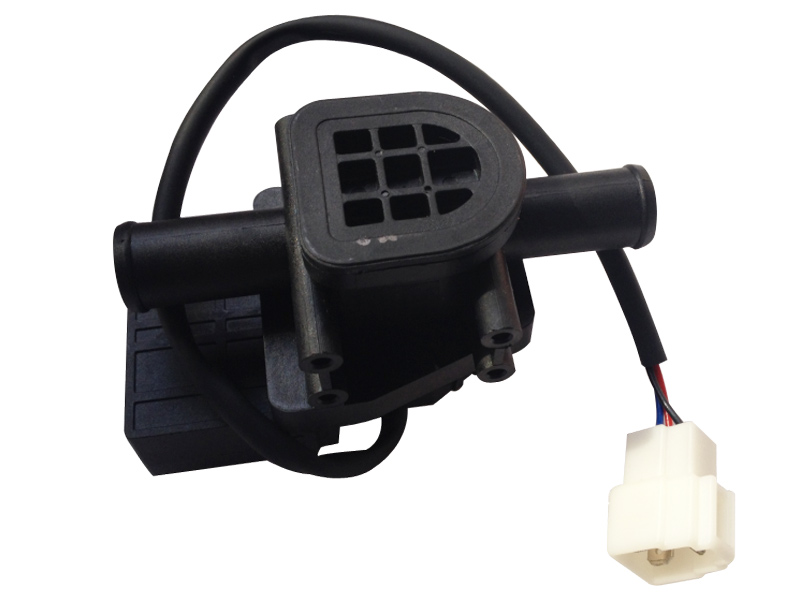

It turn on/off the valve by putting through/cutting off the control wire.
| Power supply | DC12V /DC24V |
| Medium | cold ,hot water |
| Medium temp | -5°c–100°c |
| Flow characteristic | on/off |
| Max diameter | DN13 |
| Leakage rate | <1L/h(no leakage at factory) |
| Interface form | hoop |
| Rotation angle | 90°c |
| Installation | Horizontally upright |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Maintenance | Maintenance free |
| Dimensions | 112x57x72mm, (wire length is adjustable) |
| Weight | 175g |
| Quality certification | TS16949/ISO9001 |
Dimension drawing
Connection:
a. Be Compatible with most control panel.
b. Stable,mature product
c. Economic cost. Mass production
d. The length of leading wire customer-design
e. The connector could be made at customer-oriential design, Tek, Molex, etc
b. Stable,mature product
c. Economic cost. Mass production
d. The length of leading wire customer-design
e. The connector could be made at customer-oriential design, Tek, Molex, etc
1. Customized connector
2. Wiring cable length could be tailored.
3. Positive control or negative control is optional.
2. Wiring cable length could be tailored.
3. Positive control or negative control is optional.
