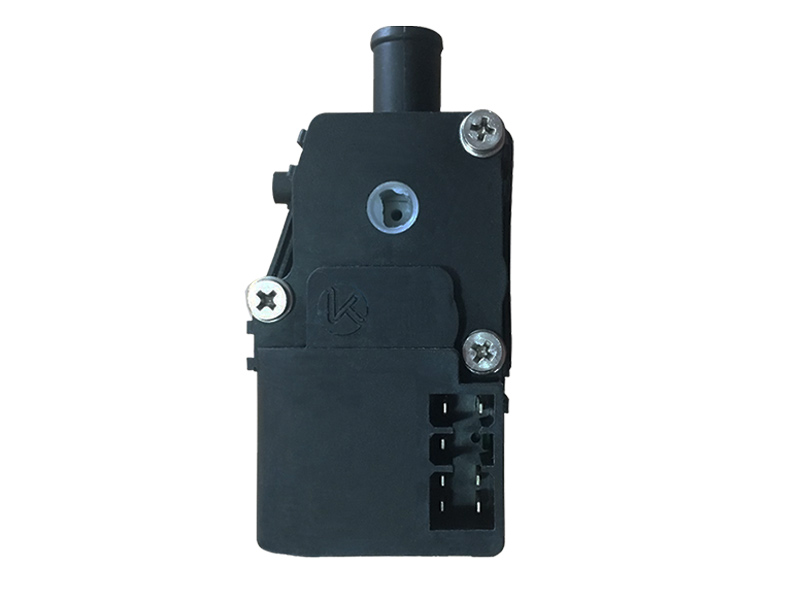

The actuator operates by switching the connection of different position pins, it could control the valve to stop at different opening percentage, so as to get more linear water flow.
| Power supply | DC12V /DC24V |
| Medium | cold ,hot water |
| Medium temp | -5°c–100°c |
| Flow characteristic | linear |
| Max diameter | DN13 |
| Leakage rate | <1L/h(no leakage at factory) |
| Interface form | hoop |
| Rotation angle | 90°c |
| Installation | Horizontally upright |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Maintenance | Maintenance free |
| Dimensions | 112x57x72mm, (wire length is adjustable) |
| Weight | 175g |
| Quality certification | TS16949/ISO9001 |
Dimension drawing
Connection:
a. Linear water flow
b. Stable, mature product
c. Economic cost. Mass production
d. Different position design, linear water flow
e. Lead-wire cable length/connector customer design
b. Stable, mature product
c. Economic cost. Mass production
d. Different position design, linear water flow
e. Lead-wire cable length/connector customer design
Stop positions could be customzied.
