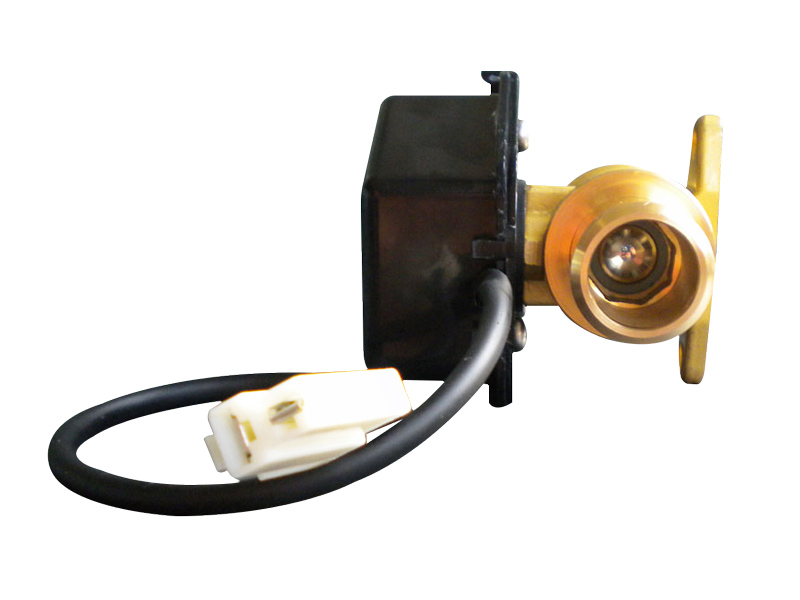

Different from the common ABS water valve, the material of valve body is brass, the actuator is covered by a waterproof shell.
2-wire ,3-wire or 5-wire actuator is optional.
A． 2-wire connection drawing
B．3-wire connection drawing
C ．5-wire connection drawing
2-wire ,3-wire or 5-wire actuator is optional.
A． 2-wire connection drawing
B．3-wire connection drawing
C ．5-wire connection drawing
| Power supply | DC12V /DC24V |
| Medium | cold ,hot water |
| Medium temp | -5°c--100°c |
| Flow characteristic | on/off |
| Max diameter | DN20 |
| Leakage rate | <1L/h(no leakage at factory) |
| Interface form | hoop |
| Rotation angle | 90°c |
| Installation | Horizontally upright |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Maintenance | Maintenance free |
| Dimensions | 123x70x76.5mm, (wire length is adjustable) |
| Weight | 580g |
| Certificates | TS16949/ISO9001 |
