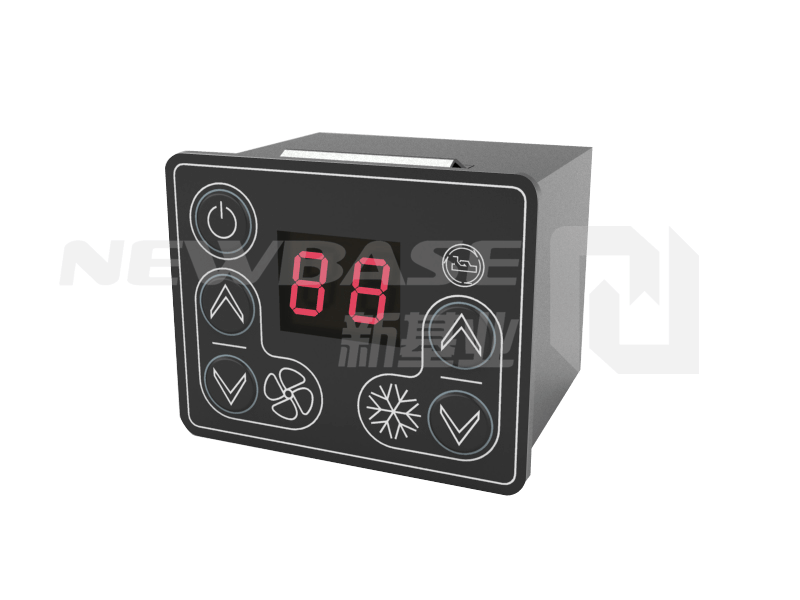

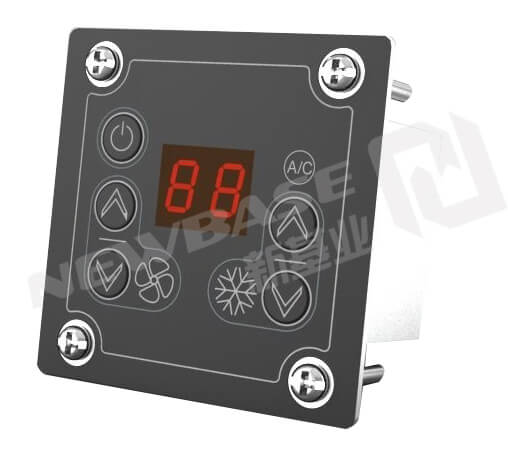

CK200209 Auto HVAC Controller,CK200209 mini air condition controller

CK200209 micro control panel for vehicule air conditioning
CK200209 air conditioner micro-controller applies to the internal climate control for bus and truck.

Main functions:

Auto control
Cooling
Fresh air
Error alarm
3-grade air-flow adjustment
Air flow regulation
remote control (optional)

Send E-mail get price

description
technical data
advantage
Variant Products
Inquiry

CK200209 air conditioner micro-controller applies to internal climate control for bus and truck.
It is smart and automatic design. After putting in the fan speed and temperature desired, the controller would operate automatically.

Main function

Cooling	YES
Heating	NO
Ventilation	NO
Fresh Air	YES
Power lost memory	YES
Error alarm	YES
Auto over-voltage protection	YES
Air flow regulation	3 grades
Interior temp display	YES
Exterior temp display	NO
Remote control

The shift function (check by manual operation)
1) Defrost temp display
2) Compel cooling

Application:
KINGTECH,LIUGONG MACHINERY

* Describe Your Buying Requirements in Detail

Product recommendations

< >

Power supply	DC12V/24V
Power consumption	2.5W
Current	Max.150mA
Dimensions	59X47X46mm
Input	1) Interior temp. sensor 2) Defrost sensor 3) Pressure sensor 4) ACC(battery) 5) Backlight power
Output	1) Fan high 2) Fan medium 3) Fan low 4) Fresh air on 5) Compressor clutch
Display	LED
Ambient temperature	-30℃—80℃ 5%－95%RH Non-condensing
Storage temperature	-10℃—70℃ 5%－95%RH Non-condensing
Display precision	Temp value. Dual digit display, Accuracy,1 °c
Protection	IP43
EMC	EN50081&EN50082-2
Security level	Applied to EN61010-II, Pollution degree: II
Weight	110g
