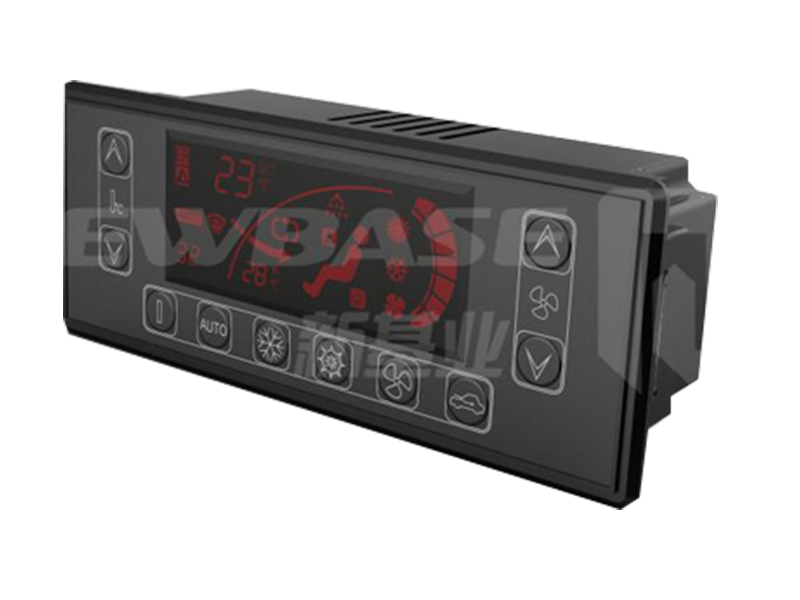

CK200205-a automatic HVAC controller applies to the bus &coach internal climate control.
It operate the air condition and heating system automatically. The operator put in the temperature and fan speed desired, controller would work auto as per the instruction.
Main function
The shift function (check by manual operation)
-Defrost temp 1 display
- Defrost temp 2 display
-Compel cooling
-Compel heating
Application:
JINLONG bus
It operate the air condition and heating system automatically. The operator put in the temperature and fan speed desired, controller would work auto as per the instruction.
Main function
| Cooling | YES |
| Heating | YES |
| Ventilation | YES |
| Fresh Air | YES |
| Auto Control | YES |
| Power lost memory | YES |
| Error alarm | YES |
| Auto over-voltage protection | YES |
| Air flow regulation | 3 grades |
| Interior temp display | YES |
| Exterior temp display | NO |
| Driver seat air flow control | Optional |
The shift function (check by manual operation)
-Defrost temp 1 display
- Defrost temp 2 display
-Compel cooling
-Compel heating
Application:
JINLONG bus
| Power supply | DC24V |
| Power consumption | 4.5W |
| Current | Max.200mA |

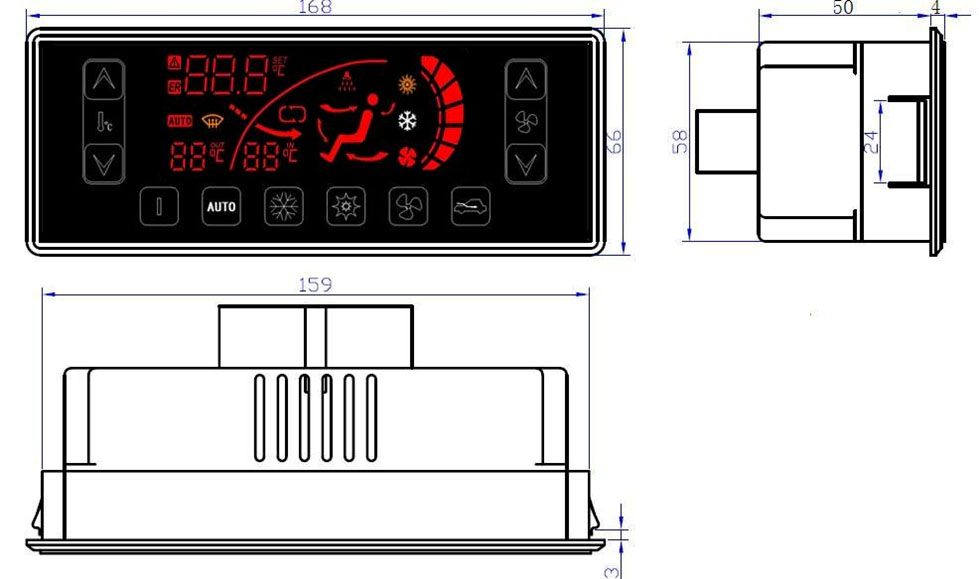

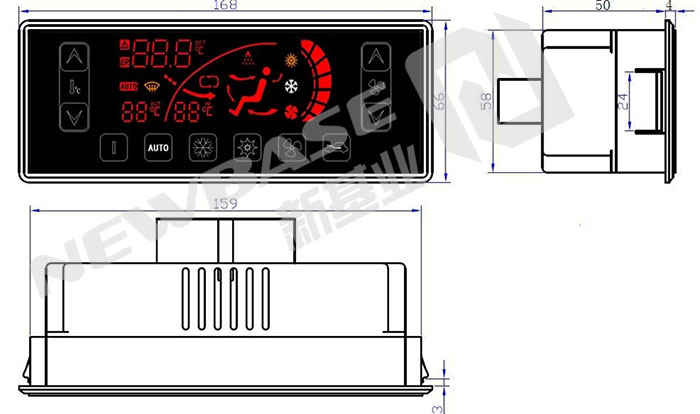

| Dimensions | 168X66X54mm |
| Input | 1) Interior temp. sensor 2) Defrost sensor 3) Pressure sensor 4) ACC power(battery) 5) Backlight power 6) Water pump running indication 7) Heater running indication |
| Output | 1)Condenser fan 2) Fan high 3) Fan medium 4) Fan low 5) Fresh air on 6) Fresh air off 7) Compressor clutch 8) Ventilating fan low 9) Ventilating fan high 10)Defrost fan low 11) Pump control 12)Excitation 13) Defroster high 14)Heater control |
| Display | LED |
| Ambient temperature | -30℃—80℃ 5%－95%RH Non-condensing |
| Storage temperature | -10℃—70℃ 5%－95%RH Non-condensing |
| Display precision | Temp value. Dual digit display, Accuracy,1 °c |
| Protection | IP43 |
| EMC | EN50081&EN50082-2 |
| Security level | Applied to EN61010-II, Pollution degree: II |
| Weight | 320g |

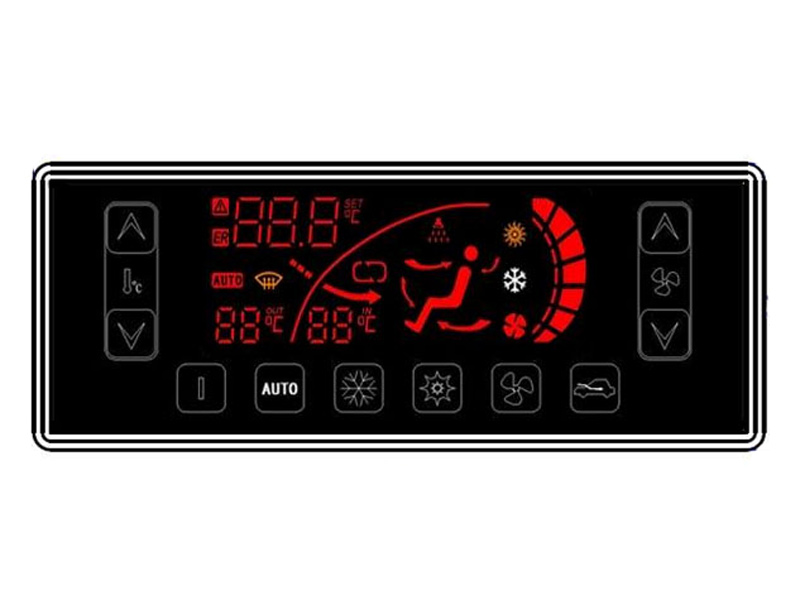

1.LED design, Ture color and good-looking design
2.Cooling, heating, Fully auto control
3.Running time check, Defrost Temp. display
4.The driver seat separation control is optional
5.Program customer-design
6.Custom logo
2.Cooling, heating, Fully auto control
3.Running time check, Defrost Temp. display
4.The driver seat separation control is optional
5.Program customer-design
6.Custom logo
1.CK200205-b
a.Cooling & Heating
b.7-grade fan speed
c.Driver seat separation control
d, differenct display icons

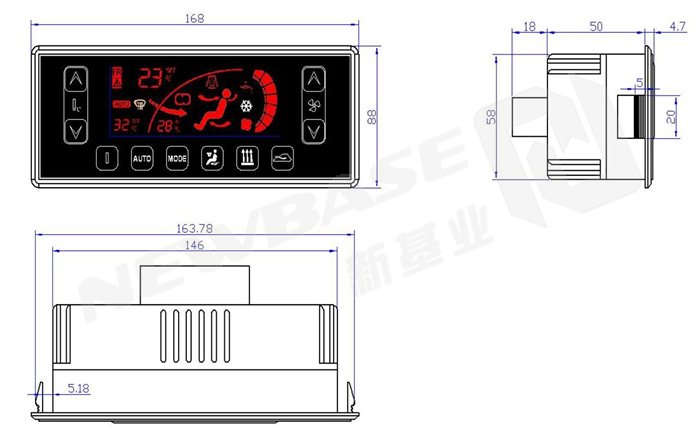

2. CK200205-C
a, air blowing mode regulation
b. bus windscreen defrosting
a.Cooling & Heating
b.7-grade fan speed
c.Driver seat separation control
d, differenct display icons
2. CK200205-C
a, air blowing mode regulation
b. bus windscreen defrosting
