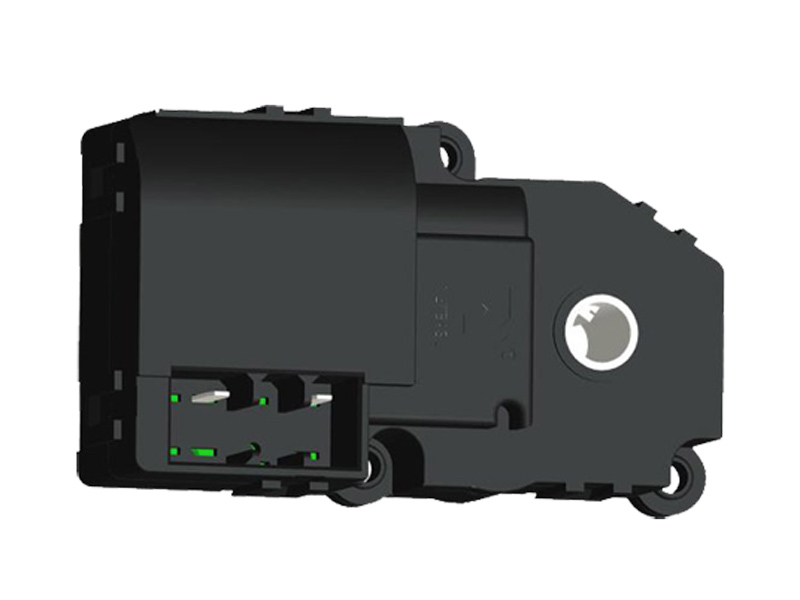

Temp ac blend door actuator is used to control the temp and air damper of the car and special vehicle.
Continuously adjust the temp by switching polarity of actuator wiring, at the same time, the actuator will send the ventilation door position signal back to system.
Application case:
WINIA MANDO, HYUNDAI bus, DAIHAN, SSMC,DENSO,IVECO
Accessories:
1. Bracket: plentiful selects, or customization;
2. Lever: plentiful selects, or customization;
3. Connector: customization.
Continuously adjust the temp by switching polarity of actuator wiring, at the same time, the actuator will send the ventilation door position signal back to system.
Application case:
WINIA MANDO, HYUNDAI bus, DAIHAN, SSMC,DENSO,IVECO
Accessories:
1. Bracket: plentiful selects, or customization;
2. Lever: plentiful selects, or customization;
3. Connector: customization.
| Power supply | DC12V /DV24V |
| Power consumption | 3W |
| Current | Max.70mA |
| Electrical connection | Max.1m X 0.5mm² |
| Direction of rotation | CW/CCW |
| Angle of rotation | 84°/108°+2° (Customization) |
| Torque | 4kgf.cm |
| Running time | 3.5+0.5rpm |
| Locked torque | 12kgf.cm |
| Locked current | Max.250mA |
| Noise level | Max.43dB(A) |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Life | Max.500,000 cycle |
| Dimensions | 83X50X28(mm) |
| Weight | 94g |
| Quality certification | TS16949/ISO9001 |
