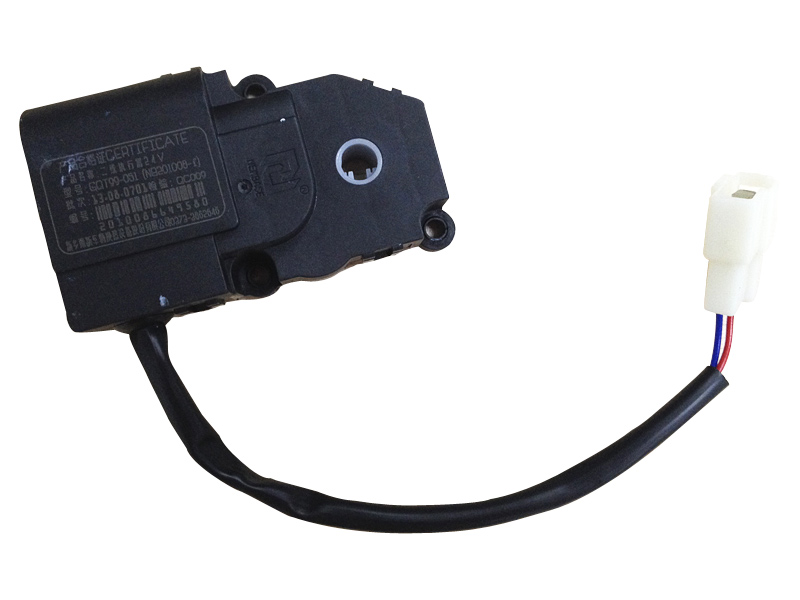

SWITCH actuator is used to control the fresh air damper in the bus AC system.
Turn on/off the fresh air device of AC system by putting through/cutting off the control wire (+) of the actuator.
Application case:
WINIA MANDO, HYUNDAI , KIA,SSMC,DAIHAN,DENSO,YUTONG BUS
Accessories:
1. Bracket: plentiful selects, or customization;
2. Lever: plentiful selects, or customization;
3. Connector: customization.
Turn on/off the fresh air device of AC system by putting through/cutting off the control wire (+) of the actuator.
Application case:
WINIA MANDO, HYUNDAI , KIA,SSMC,DAIHAN,DENSO,YUTONG BUS
Accessories:
1. Bracket: plentiful selects, or customization;
2. Lever: plentiful selects, or customization;
3. Connector: customization.
| Power supply | DC24V/DC12V |
| Power consumption | 3W |
| Current | Max.70mA |
| Electrical connection | Max.1m X 0.5mm² |
| Direction of rotation | CW/CCW |
| Angle of rotation | 114°/+2° (Adjustable) |
| Torque | 4kgf.cm |
| Running time | 3.5+0.5rpm |
| Locked torque | 12kgf.cm |
| Locked current | Max.250mA |
| Noise level | Max.42dB(A) |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Life | Max.500,000 cycle |
| Dimensions | 83X50X28(mm) |
| Weight | 94g |
| Quality certification | TS16949/ISO9001 |
