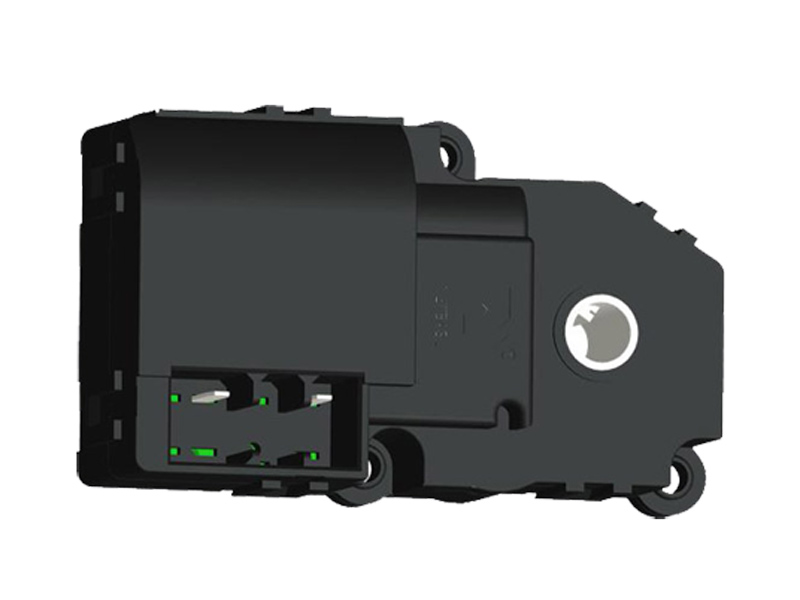

MODE actuator (multi-position) applies to control the mode of air damper in the car and special vehicle AC system.
By switching the terminal connection of the actuator, turn the blade at different mode, so as to switch the air mode.
Application case:
WINIA MANDO, HYUNDAI ,SSMC,DAIHAN,DENSO,CHANGHE IDEAL.
Accessories:
1. Bracket: plentiful selects, or customization;
2. Lever: plentiful selects, or customization;
3. Connector: customization.
By switching the terminal connection of the actuator, turn the blade at different mode, so as to switch the air mode.
Application case:
WINIA MANDO, HYUNDAI ,SSMC,DAIHAN,DENSO,CHANGHE IDEAL.
Accessories:
1. Bracket: plentiful selects, or customization;
2. Lever: plentiful selects, or customization;
3. Connector: customization.
| Power supply | DC24V/DC12V |
| Power consumption | 3W |
| Current | Max.70mA |
| Electrical connection | Max.1m X 0.5mm² |
| Direction of rotation | CW/CCW |
| Angle of rotation | 18°/20°/22°/30°/+2° (Adjustable) |
| Torque | 4kgf.cm |
| Running time | 3.5+0.5rpm |
| Locked torque | 12kgf.cm |
| Locked current | Max.250mA |
| Noise level | Max.42dB(A) |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Life | Max.500,000 cycle |
| Dimensions | 83X50X28(mm) |
| Weight | 94g |
| Quality certification | TS16949/ISO9001 |
