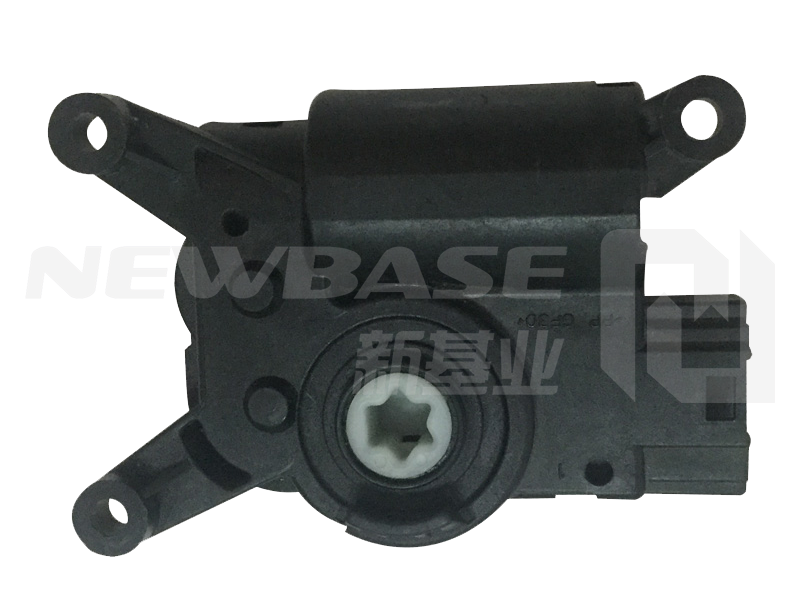

TempII actuator is used to control the temp and air damper of the HVAC system in the car or other special vehicle.
Continuously adjust the temp by switching the polarity of power supply wires, at the same time, it could also give a feedback of the opening to the HVAC system.
Application:
Volkswagen
|
Power supply |
DC12V /DV24V |
|
Power consumption |
3W |
|
Current |
Max.100mA |
|
Connection |
molding |
|
Direction of rotation |
CW/CCW |
|
Angle of rotation |
90°+2° (adjustable) |
|
Torque |
3kgf.cm |
|
Running time |
3.5+1s/90° |
|
Locked torque |
15kgf.cm |
|
Locked current |
Max.300mA |
|
Noise level |
Max.43dB(A) |
|
Ambient temperature |
-30°c—80°c |
|
Storage temperature |
-40°c—85°c |
|
Life |
Max.200,000 cycle |
|
Dimensions |
83.5X59X28(mm) |
|
Weight |
90g |
|
Quality certification |
TS16949/ISO9001 |
Dimension:
