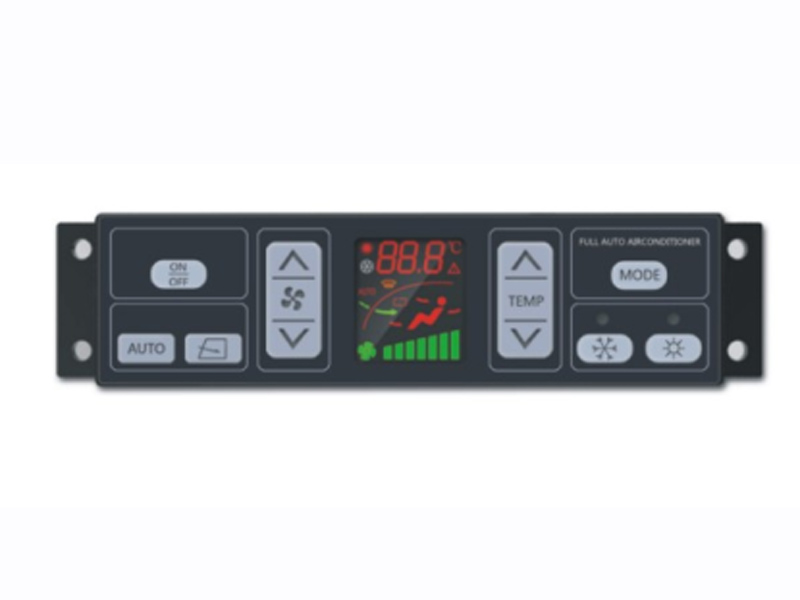

CG220216 digital air conditioner controller applies to internal climate control of construction vehicle, truck, Van, Cabin, etc.
Main function
|
Cooling |
YES |
|
Heating |
YES |
|
Ventilation |
NO |
|
Fresh Air |
YES |
|
Power lost memory |
YES |
|
Error alarm |
YES |
|
Auto over-voltage protection |
YES |
|
Air flow regulation |
3 grades |
|
Air blowing setting |
YES |
|
Demist |
YES |
|
Interior temp display |
YES |
The shift function (check by manual operation)
-Defrost temp display
Application:
LIUGONG Machinery, XGM Machinery
|
Power supply |
DC12V/24V |
|
Power consumption |
4W |
|
Current |
Max.200mA |
|
Dimensions |
210X48X110mm |
|
Input |
1) Interior temp. sensor 2) Defrost sensor 3) Pressure sensor 4) ACC(battery) 5) Backlight power |
|
Output |
1) Fan speed PWM 2) Demist 3) Compressor clutch 4)Heating 5)Back-blowing 6)Feet-blowing 7)Front-blowing 8)Fresh air |
|
Display |
LED |
|
Ambient temperature |
-30℃—80℃ 5%－95%RH Non-condensing |
|
Storage temperature |
-10℃—70℃ 5%－95%RH Non-condensing |
|
Display precision |
Temp value. Dual digit display, Accuracy,1 °c |
|
Protection |
IP54 |
|
EMC |
EN50081&EN50082-2 |
|
Security level |
Applied to EN61010-II, Pollution degree: II |
|
Weight |
390g |
Dimension drawing
.jpg)
a. Special design for the construction vehicle
b. Harsh environment resist
c. Cooling, heating, ventilation ,fan speed, full function control
d. Program customer-design
e. Custom LOGO
