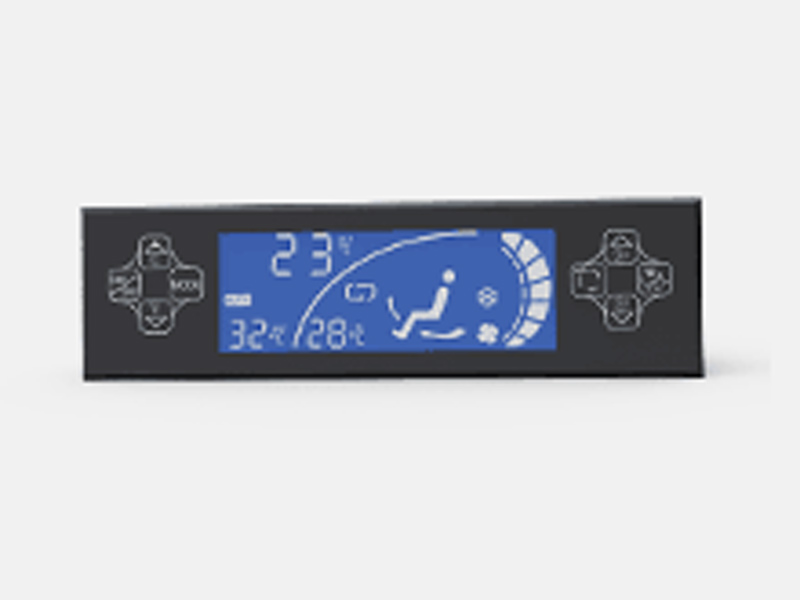

CG220213 air conditioner&heating controller matches the internal climate control of construction vehicle, truck, van, etc
Main function
|
Cooling |
YES |
|
Heating |
YES |
|
Ventilation |
YES |
|
Fresh Air |
YES |
|
Auto Control |
YES |
|
Power lost memory |
YES |
|
Error alarm |
YES |
|
Auto over-voltage protection |
YES |
|
Air flow regulation |
7 grades（PWM） |
|
Air blowing mode |
YES |
|
Demist |
YES |
|
Interior temp display |
YES |
|
Exterior temp display |
NO |
The shift function (check by manual operation)
- Deforst temp display
Application:
LIUGONG Machinery; XGM Machinery
|
Power supply |
DC12/24V |
|
Power consumption |
2W |
|
Current |
Max.200mA |
|
Dimensions |
155X44X41mm |
|
Input |
1) Interior temp. sensor 2) Defrost sensor 3) Pressure switch 4) ACC(battery) 5) Backlight power |
|
Output |
1)Demist output 2)Cooling output 3)Fan speed PWM 4)Front blow state 5)Back blow state 6)Blow feet state 7)Heating 8)Fresh air |
|
Display |
LCD (blue) |
|
Ambient temperature |
-30℃—80℃ 5%－95%RH Non-condensing |
|
Storage temperature |
-10℃—70℃ 5%－95%RH Non-condensing |
|
Display precision |
Temp value. Dual digit display, Accuracy,1 °c |
|
Protection |
IP43 |
|
EMC |
EN50081&EN50082-2 |
|
Security level |
Applied to EN61010-II, Pollution degree: II |
|
Weight |
145g |
Dimension drawing
.jpg)
b. LCD display
c. Cooling, heating,ventilation, fan speed, full function
d. Program customer-design
e. Custom LOGO
