1.Function:
XF-5 fresh air device applies to control the ventilation door of the fresh air device in the bus AC system.
Material: ABS, 3M filter, preplaced nut, seal and reliable, turn smoothly and easy assemble.
Turn on/off the fresh air device of AC system by putting through/cutting off the control wire.
2. Application case:
YUTONG BUS, SHENLONG BUS
3. Accessories:
• Assemble hole: plentiful selects, or customization
• Connector: customization.

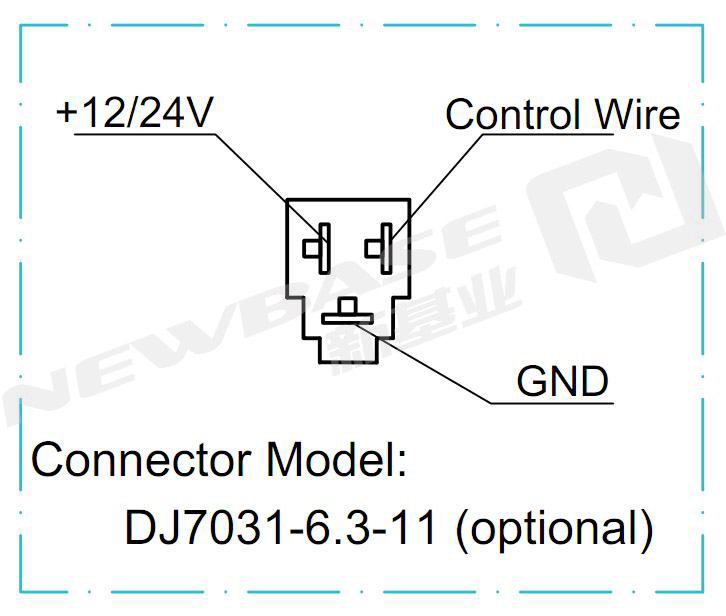

4.Wiring diagram
XF-5 fresh air device applies to control the ventilation door of the fresh air device in the bus AC system.
Material: ABS, 3M filter, preplaced nut, seal and reliable, turn smoothly and easy assemble.
Turn on/off the fresh air device of AC system by putting through/cutting off the control wire.
2. Application case:
YUTONG BUS, SHENLONG BUS
3. Accessories:
• Assemble hole: plentiful selects, or customization
• Connector: customization.
4.Wiring diagram
| Code | XF-5 |
| Power supply | DC24V/DC12V |
| Power consumption | 3W |
| Current | Max.58mA |
| Electrical connection | Max.1m X 0.5mm² |
| Direction of rotation | CW/CCW |
| Area of the damper | 0.02m² |
| Running time | 3.5±0.5rpm |
| Locked current | Max.300mA |
| Noise level | Max.43dB(A) |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Life | Max.500,000 cycle |

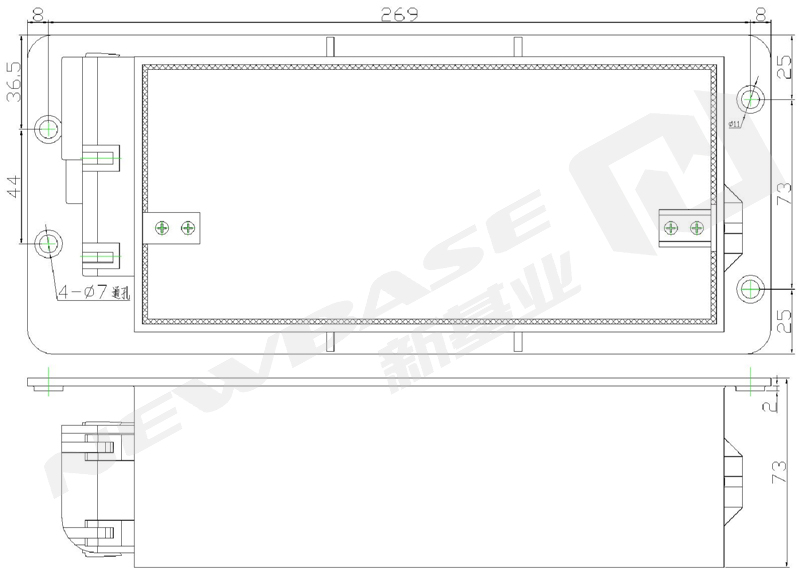

| Dimensions | 285X123X70(mm) |
| Weight | 450g |
| Quality certification | TS16949/ISO9001 |
a. Wiring connectors customized
b. Mature&Stable,largely used
c. Competitive price
d. Popular dimensions
e. Easily installation
