1.Function:

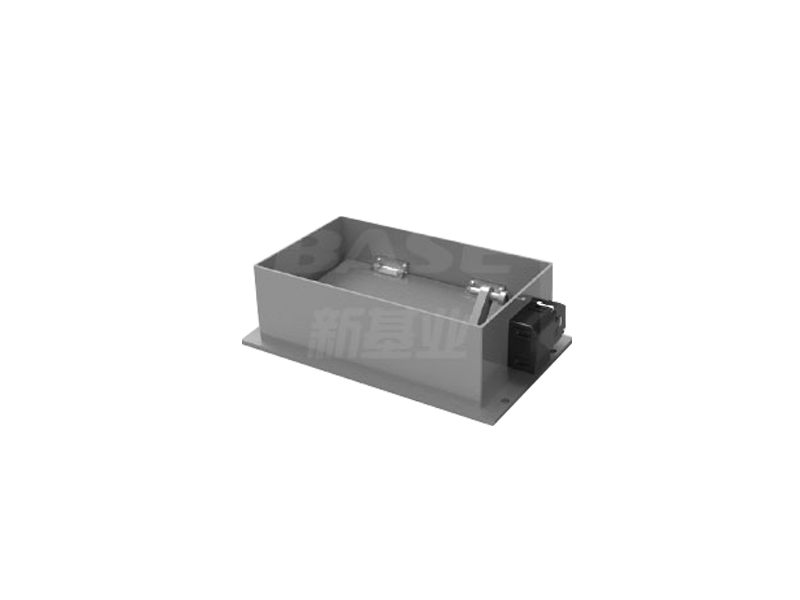

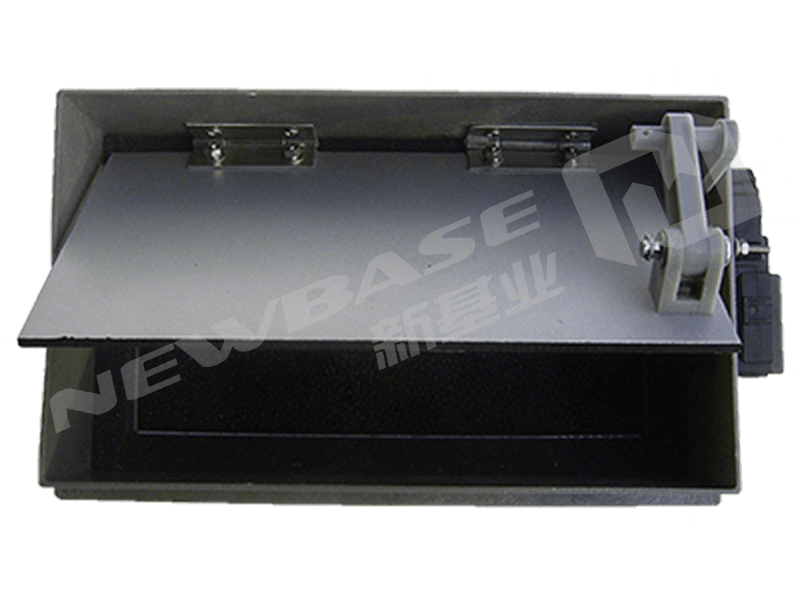

XF-3 fresh air device applies to control the ventilation door of the fresh air device in the bus AC system.
Material: ABS, aluminum-plastic fan,3M filter, preplaced nut, seal and reliable, turn smoothly and easy assemble.
Turn on/off the fresh air device of AC system by putting through/cutting off the control wire.
2.Application case:
YUTONG BUS,RAFERALSTON,BOMBARDIER
3.Accessories:
• Assemble hole: plentiful selects, or customization
• Connector:customization.

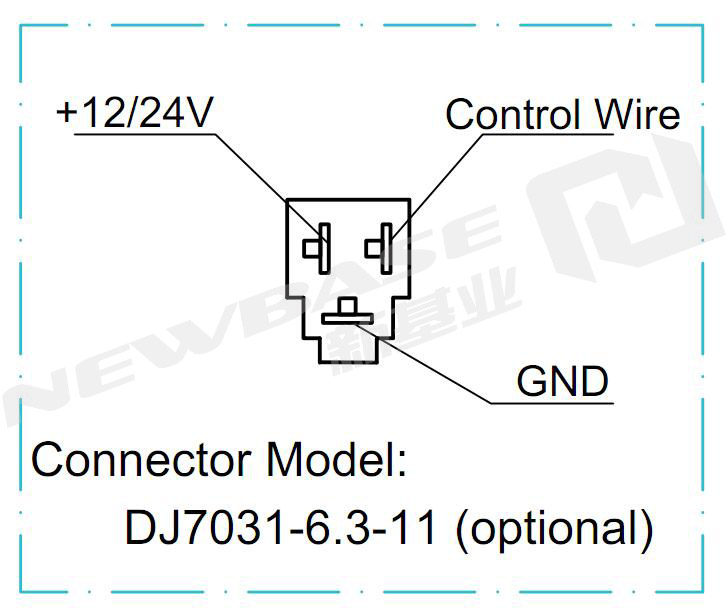

4.Wiring diagram
XF-3 fresh air device applies to control the ventilation door of the fresh air device in the bus AC system.
Material: ABS, aluminum-plastic fan,3M filter, preplaced nut, seal and reliable, turn smoothly and easy assemble.
Turn on/off the fresh air device of AC system by putting through/cutting off the control wire.
2.Application case:
YUTONG BUS,RAFERALSTON,BOMBARDIER
3.Accessories:
• Assemble hole: plentiful selects, or customization
• Connector:customization.
4.Wiring diagram
| Code | XF-3 |
| Power supply | DC24V/DC12V |
| Power consumption | 3W |
| Current | Max.70mA |
| Electrical connection | Max.1m X 0.5mm² |
| Direction of rotation | CW/CCW |
| Area of the damper | 0.03m² |
| Running time | 3.5±0.5rpm |
| Locked current | Max.250mA |
| Noise level | Max.43dB(A) |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Life | Max.500,000 cycle |

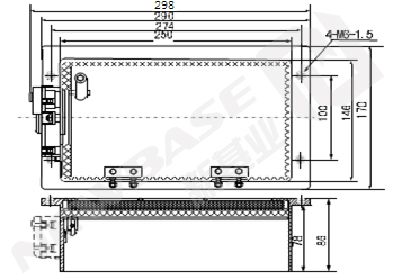

| Dimensions | 298X170X86(mm) |
| Weight | 750g |
| Quality certification | TS16949/ISO9001 |
a. Wiring customized
b. Small dimensions,light weight
