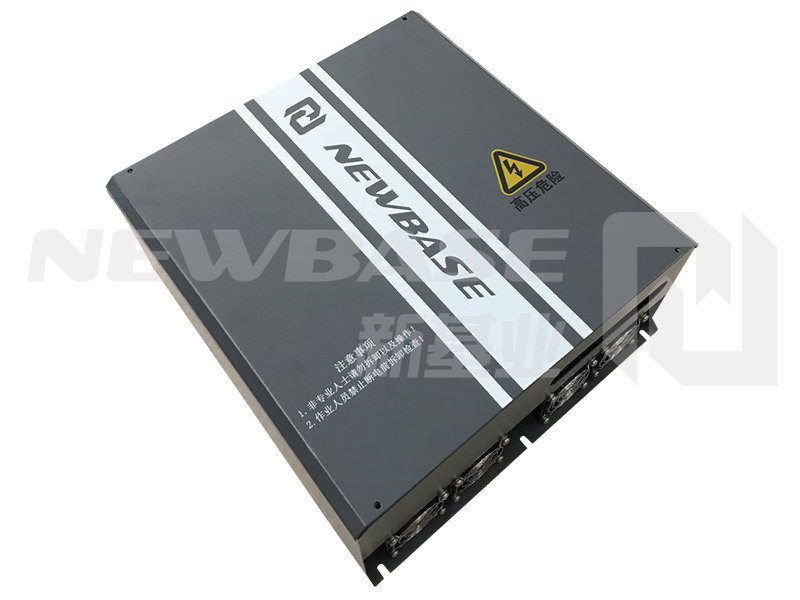

DC230203 ALL-IN-ONE DC power unit is used for the power supply of AC system and climate control on electrical bus.
The electronic control module is specially designed as per customers demand, to control the DC-DC convertor module and frequence transducer , and then the whole AC system, like fan motors, compressor, fresh air damper, water valve and so on.
The new generator product intergrates the DC-DC convertor module, 15KW frequence transducer module, electronic control module into one electric box.
It is much easier for wiring connection, installation, operation and maintenance than previous distributed design.
Application
YUTONG bus
The electronic control module is specially designed as per customers demand, to control the DC-DC convertor module and frequence transducer , and then the whole AC system, like fan motors, compressor, fresh air damper, water valve and so on.
The new generator product intergrates the DC-DC convertor module, 15KW frequence transducer module, electronic control module into one electric box.
It is much easier for wiring connection, installation, operation and maintenance than previous distributed design.
Application
YUTONG bus
|
Power input |
DC600V |
|
Power output |
DC27V |
|
Dimension |
376X348X160mm |
|
Ambient temperature |
-40℃—85℃ 5%－95%RH Non-condensing |
|
Storage temperature |
-40℃—90℃ 5%－95%RH Non-condensing |

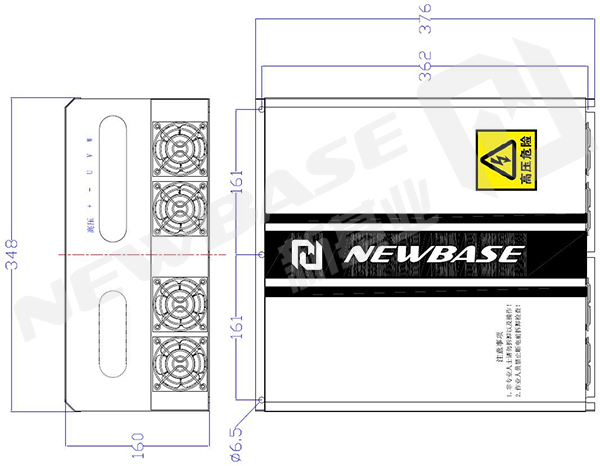

Dimension
