CL200201 controller applies to refrigeration & freezing control system for truck refrigeration& trailer container.
Main function
|
Freezing |
YES |
|
Refreshing |
YES |
|
Defrost |
YES |
|
Auto Control |
YES |
|
Power lost memory |
YES |
|
Error alarm |
YES |
|
Auto over-voltage protection |
YES |
|
Air flow regulation |
NO |
|
Interior temp display |
YES |
|
Exterior temp display |
YES |
|
Standby |
YES |
The shift function (check by manual operation)
- Temp deviation regulation
-Defrost temp display
- Air outlet temp display
Application
|
Power supply |
DC24V/12V |
|
Power consumption |
3w |
|
Current |
Max.350mA |
|
Dimensions(mm) |
137x46x67mm |
|
Input |
1) Interior temp. sensor 2)Air outlet sensor 3)Defrost sensor 4)Pressure switch 5)ACC power 6)Standby power 7)Condenser fan pressure switch 8) Power shortage& reversal signal |
|
Output |
1)Evaporator 2)Condenser fan 3)Compressor switch 4)Defrost control 5)Heating 6)Standby |
|
Display |
LED |
|
Ambient temperature |
-30°c—80°c 5%-95%RH Non-condensing |
|
Storage temperature |
-10°c—70°c 5%-95%RH Non-condensing |
|
Display precision |
Temp value. Dual digit display, Accuracy,1 °c |
|
Protection |
IP43 |
|
EMC |
EN50081&EN50082-2 |
|
Security level |
Applied to EN61010-II,Pollution degree :II |
|
Weight: |
225g |
1. Mature product for mass production
2. Customer-oriental logo available
3. Customer-design available
4. Auto Control
5. Self-check temp info/defrost cycle

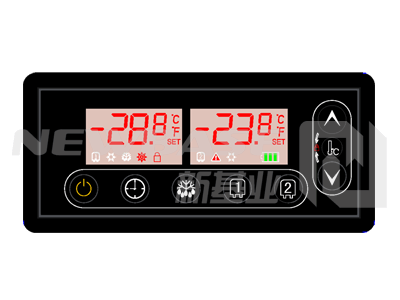

1. CL200201-a
Advantage:
a. Different appearance design
b. Customer-oriental logo available

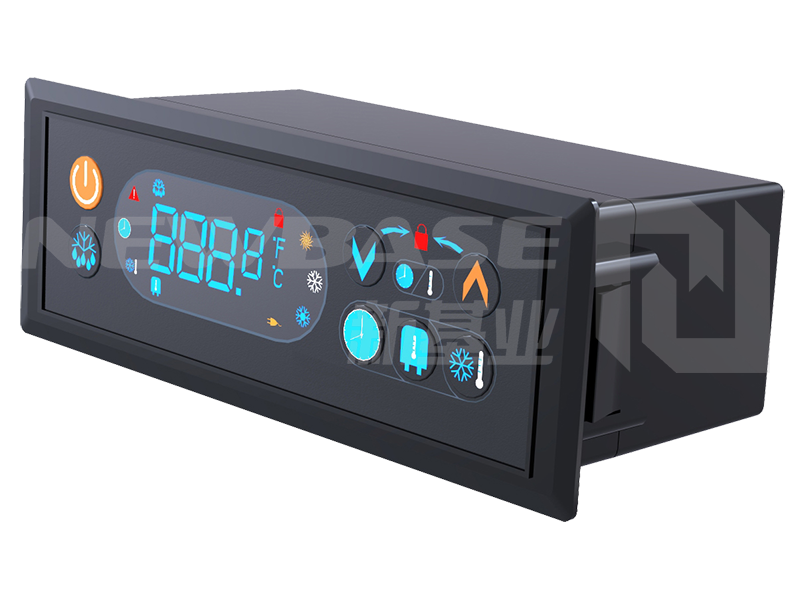

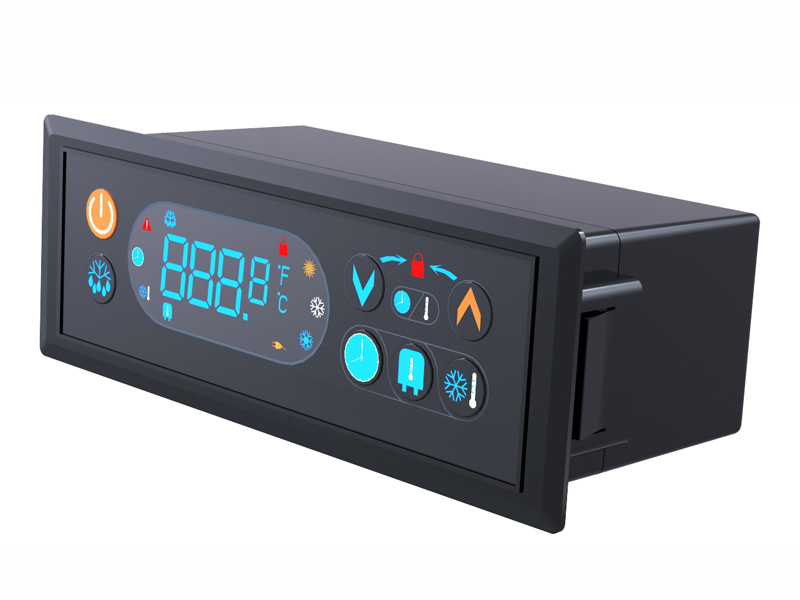

2. CL200201-b
.jpg)
Advantage: a. DC power design
b. Standby design
c. Customer-oriental logo available
d. Customer-design available
e. Auto Control
f. Self-check temp info/defrost cycle
