TEMPII CONTROL ACTUATOR

Main functions:

Send E-mailget price

Share with:
  • description
  • technical data
  • advantage
  • Variant Products
  • Inquiry
 TempII actuator is used to control the temp  and air damper of the HVAC system in the car or other special vehicle.



Continuously adjust the temp by switching the polarity of power supply wires, at the same time, it could also give a feedback of the opening to the HVAC system.



Application:

Peugeot



OEM number:

PARS/P2/NX7

RS502-40050



Power supply

DC12V /DV24V

Power consumption

3W

Current

Max.100mA

Connection

molding

Direction of rotation

CW/CCW

Angle of rotation

90°+2° (adjustable)

Torque

3kgf.cm

Running time

3.5+1s/90°

Locked torque

15kgf.cm

Locked current

Max.300mA

Noise level

Max.43dB(A)

Ambient temperature

-30°c—80°c

Storage temperature

-40°c—85°c

Life

Max.200,000 cycle

Dimensions

77X55X30(mm)

Weight

105g

Quality certification

TS16949/ISO9001

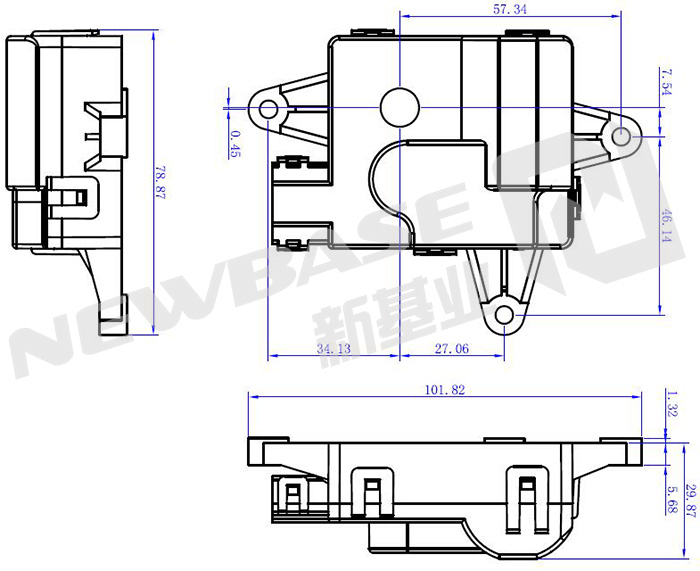

Dimension:

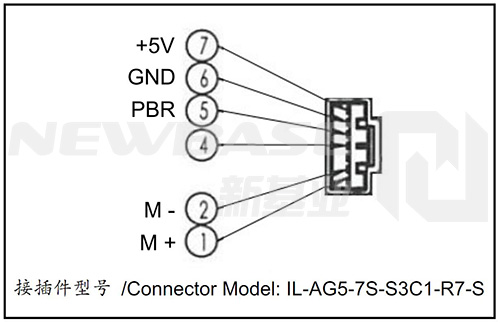

Connection:
